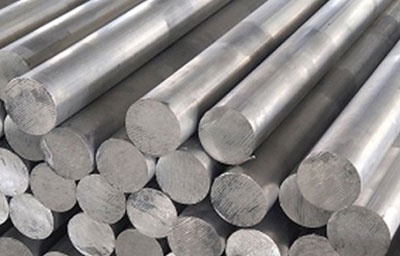

Titanium Round Bars
Super Metal Manufacturing Co. are Manufacturers, Exporters and Supplier of high quality Titanium Round bars in mumbai, India. We also offer the complete range of grades like Titanium GR I, GR -2, GR-3, GR-4, GR-5, GR-7 Round bars as per the clients requirements. These Round bars made of high grade steel which has great durability, strong and sturdy quality with smooth surface. These are available different dimentions, specification & thickness as per the clients requirements. These are widely used in chemicals and petro-chemicals Plants, desalination plants, paper & pulp Industries, automotive etc.
Specification :
| Range | : | 8mm - 200mm |
| Wier Range | : | 0.03mm - 6.0mm |
| Standards | : | ASTM B348 / ASME B348, ASTM B 863 / ASME SB 863. |
| Length | : | Random, Fix & Cut Length |
| Finish | : | Bright, Polish & Black |
| Form | : | Round, Square, Hex (A/F), Bush, Rectangle , Flat, Wire Mesh |
| Grades | : | UNS R50400, UNS N56400, Titanium Gr-1, Titanium Gr-2, Titanium Gr-5, Titanium Gr-7. |
Chemical Composition of Titanium Alloy Round bars:
| Hardness, Brinell | 120 | 120 | annealed |
| Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
| Hardness, Rockwell B | 70 | 70 | annealed |
| Hardness, Vickers | 122 | 122 | Estimated from Brinell |
| Tensile Strength, Ultimate | 240 MPa | 34800 psi | - |
| Tensile Strength, Yield | 170 - 310 MPa | 24700 - 45000 psi | - |
| Elongation at Break | 24 % | 24 % | - |
| Reduction of Area | 35 % | 35 % | - |
| Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
| Compressive Modulus | 110 GPa | 16000 ksi | - |
| Poisson's Ratio | 0.37 | 0.37 | - |
| Charpy Impact | 310 J | 229 ft-lb | V-notch |
| Shear Modulus | 45 GPa | 6530 ksi | - |
Physical Properties of Titanium Alloy Round bars:
| Physical Properties | Metric | English |
| Density | 4.51 g/cc | 0.163 lb/in³ |
